Load Tables & Installation Notes

NETBRACE® comes in a range of sizes and packs a punch of lateral wall bracing.

Installation Notes

• In order to achieve compliance – Installer must use: 4 x Chemical Anchors – Ramset 502 (8.8) M16 – 160mm minimum embedment or approved equivalent.

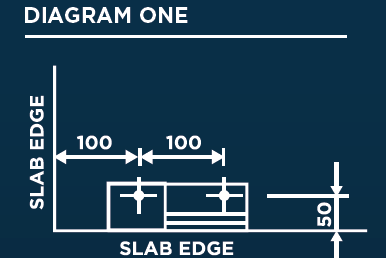

• In order to achieve compliance – Installer must ensure minimum stud anchor edge distances to slab (Refer to diagram one below).

• Stud frames and top plates to be fixed to the NETBRACE ® in accordance with good building practices.
• To be concealed within the wall cavity, protected from elements.

Load Table for Queensland

Download the Load Table for Queensland

Load Table for Victoria

Download the Load Table for Victoria
